| Top | |
| Wood Species: | Maple |
| Pieces: | 2 |
| Grade: | C |
| Binding: | None |
| Back | |
| Wood Species: | Mahogany |
| Pieces: | 2 |
| Density: | Medium |
| Binding: | None |
| Weight | |
| Weight Relief: | Ultra Modern |
| Average Weight (body only): | 4lbs. 6.7oz |
| Materials Used | |
| Glue: | Franklin Titebond 50 |
| Tonal, Resonant, and/or Technical Effect: | Sculpted Fast Access Heel |
| Body Contour | |
| Carve: | Classic |
| Neck | |
| Wood Species: | Maple |
| Pieces: | 1 |
| Details | |
| Truss Rod: | Les Paul |
| Profile: | Slim taper |
| Thickness at Fret 1: | .800" |
| Thickness at Fret 12: | .875" |
| Average Weight: | 1 lbs 2.0 oz |
| Peg Head | |
| Type: | SP1-B |
| Inlay: | None |
| Peg Head Binding: | None |
| Logo: | n/a |
| Silkscreen: | Gold "Gibson" & "Les Paul Model" |
| Headstock Angle: | 17 degrees |
| Neck Fit | |
| Joint Angle: | 5.0 degrees |
| Joint Angle Tolerance: | 0 deg 0 min 15 sec |
| Type: | Mortis and Tenon |
| Adhesive: | Franklin Titebond 50 |
| Gauges Used: | Pitch Height Gauge |
| Nut | |
| Style: | Zero Fret Nut |
| Material: | Titanium |
| Width: | 1.745" |
| Slots: |
E: 0.058" A: 0.048" D: 0.038" G: 0.028" B: 0.019" e: 0.014" |
| Fingerboard | |
| Wood Species: | Rosewood |
| Pieces: | 1 |
| Shade: | Medium |
| Fingerboard Details | |
| Radius: | 12" |
| Frets: | 22 |
| Nut/End of Board: | 1.745" @ nut, 2.310" @ end of board |
| Scale: | 24.75" |
| Binding: | None |
| Side Dots (Color): | White |
| Fingerboard Inlays | |
| Style: | Dots |
| Material: | Mother of Pearl |
| Dimensions: | Small - 0.249" |
| Average Weight: | 4.16 oz |

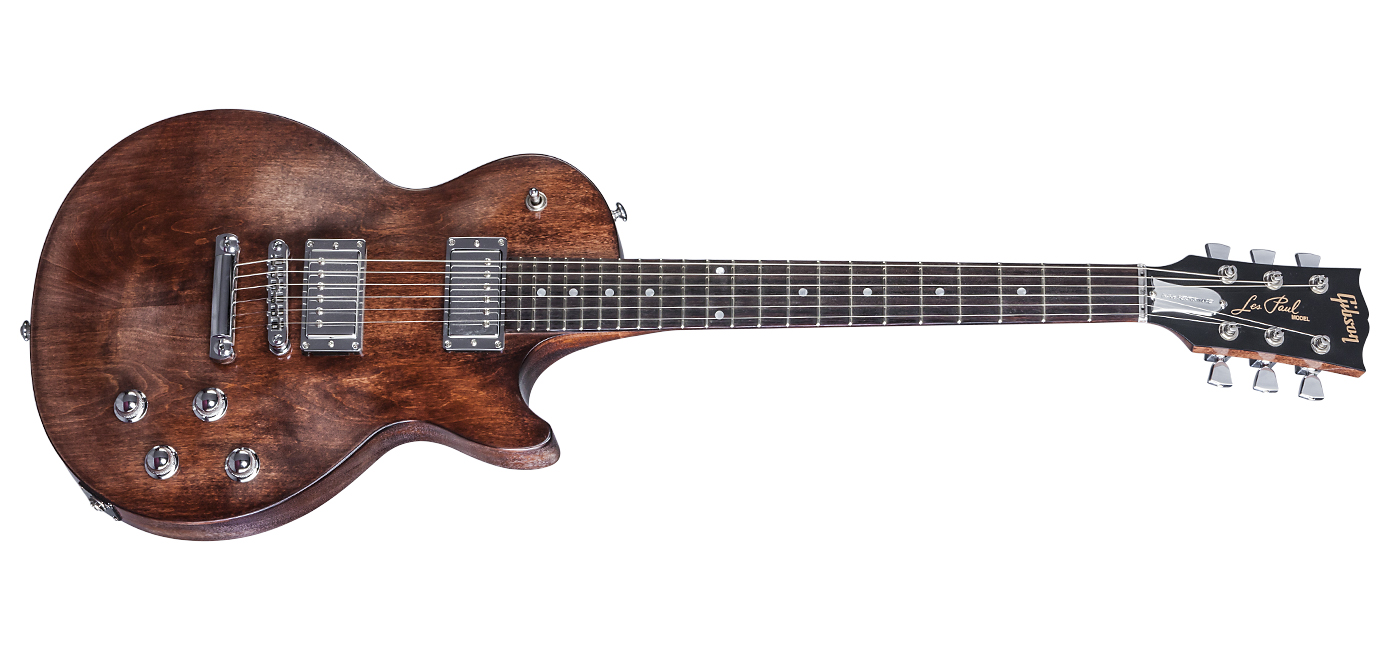

| Color Code: | WB |
| Surface Texture: | Smooth Worn Satin |
| Filler: | None |
| Sealer: | 1.5 - 2 mils |
| Top: | Worn Brown Stain |
| Top Coat: | Satin Lacquer / 30 Sheen, 3-4 mils |
| Scraped: | Fingerboard sides and Nut |

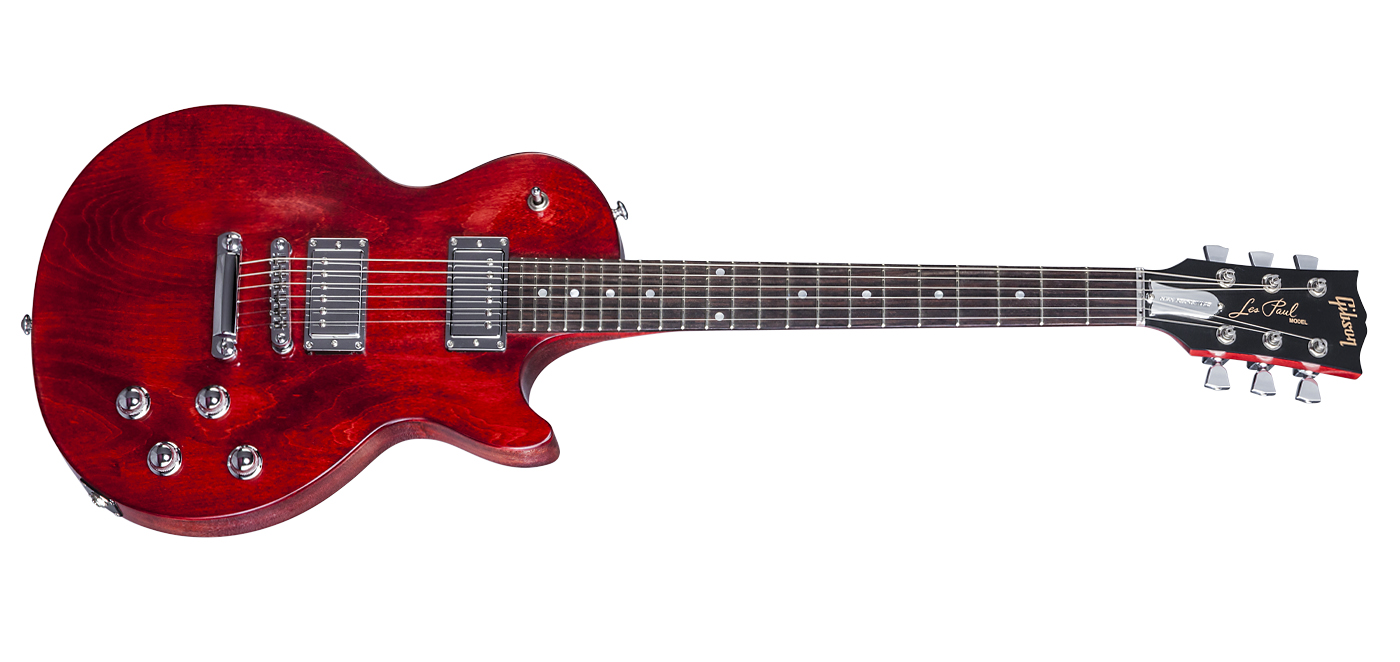

| Color Code: | WC |
| Surface Texture: | Smooth Worn Satin |
| Filler: | None |
| Sealer: | 1.5 - 2 mils |
| Top: | Worn Cherry Stain |
| Top Coat: | Satin Lacquer / 30 Sheen, 3-4 mils |
| Scraped: | Fingerboard sides and Nut |
| Pickups | Rhythm | Lead | |
|---|---|---|---|
| Style: | 61 Rhythm | 61 Lead | |
| Winds/Coil: Screw side/Slug side: | 5261/5000 | 5261/5000 | |
| Material of Wire (gauge): | 42 Enamel | 42 Enamel | |
| Coil Dimensions (per coil): | 2.61 x 0.68" | 2.61 x 0.68" | |
| Coil Material: | ABS | ABS | |
| Coil Winding Process: | Machine Wound | Machine Wound | |
| Pole Piece Material: | Nickel plated steel | Nickel plated steel | |
| Pole Piece Position from Nut: | 18.625" | 23.437" | |
| Slug Material: | Nickel plated steel | Nickel plated steel | |
| Slug Dimensions (diameter x length): | 0.187 x 0.489" | 0.187 x 0.489" | |
| Magnet Material: | Alnico V | Alnico V | |
| Magnet Position from Nut: | 19" | 23 1/8" | |
| Polarities: | North to slug | North to slug | |
| Cover: | Chrome | Chrome | |
| Qfactor: | 7693 Ohms | 7947 Ohms | |
| ResistanceDC: | 2832.53 Hz | 2733.68 Hz | |
| Resonant Frequency: | 5.52 | 5.4 |
| Control Pocket Assembly | Lead Volume | Rhythm Volume | |
|---|---|---|---|
| Type: | 500K Non-Linear | 500k Non-Linear | |
| Peak Voltage: | 500V | 500V | |
| Range: | 0-500K | 0-500K | |
| Power Rating: | 1/4 watt above 100K ohms | 1/4 watt above 100K ohms | |
| Resistance Tolerance: | +/- 20% | +/- 20% | |
| Minimum Resistance: | 200 ohms | 200 ohms | |
| Lead Tone | Rhythm Tone | ||
| Type: | 500k Non-Linear | 500k Non-Linear | |
| Peak Voltage: | 500V | 500V | |
| Range: | 0-500K | 0-500K | |
| Power Rating: | 1/4 watt above 100K ohms | 1/4 watt above 100K ohms | |
| Resistance Tolerance: | +/- 20% | +/- 20% | |
| Minimum Resistance: | 200 ohms | 200 ohms | |
| Capacitors: | Lead Value | Rhythm Value | |
| .022uF | .022uF |
| Tuning Keys | |
|---|---|
| Style: | G-FORCE |
| Material: | Zamak |
| Weight: | 1.1 oz |
| Tuning Keys Details | |
| Tuning Ratio: | 40:01:00 |
| Gear Type: | Syncronized Spur Gear System |
| What is allowable turn: | +/- 4 degrees |
| Plating specs: | Chrome |
| Part numbers: | 430-14301B / 301T |
| String Dimensions | |
| E: | 0.046" |
| A: | 0.036" |
| D: | 0.026" |
| G: | 0.016" |
| B: | 0.011" |
| e: | 0.009" |
| Bridge | |
| Style: | TOM w/ Titanium Saddles and Locking Thumbwheels |
| Material: | Aluminum |
| Plating Specs: | Chrome |
| Part number: | 430-14454 / 430-94940 |
| Weight: | .96 oz |
| Dimensions of String Slots | |
|---|---|
| E: | 0.058" |
| A: | 0.048" |
| D: | 0.038" |
| G: | 0.028" |
| B: | 0.019'' |
| e: | 0.014" |
| Tailpiece | |
| Style: | Stop Bar w/ Locking Studs |
| Compensated: | No |
| Material: | Aluminum |
| Plating Specs: | Chrome |
| Part number: | 430-14451 / 430-14451 |
| Weight: | 1.12 oz |
| Output Jack | |
| Style: | 1/4" mono gold plated positive contact |
| Jack Plate | |
| Style: | Les Paul Square |
| Material: | ABS Black |
| Part Number: | 430-19385 |
| Weight: | 0.21 oz |
| Strap Buttons | |
| Material: | Aluminum |
| Plating Specs: | None |
| Part numbers: | 430-19160 / 60E |
| Weight: | 0.14 oz. |
| Pick Guard | |
|---|---|
| Style: | Removable Black LP |
| Part Number: | 430-20022B |
| Truss Rod Cover | |
| Style: | Chrome Bell, Stamped "High Performance" |
| Part Number: | 430-94926 |
| Knobs | |
| Style: | Knurled Chrome UFO |
| Part Number: | 430-14457 |
| Dial Pointers | |
| Yes/No: | No |
| Control Plate(s) (Backplate Cover) | |
|---|---|
| Style: | SS infused polycarbonate for ESD protection |
| Part Number: | 380-12209 |
| Control Plate(s) (SwitchPlate Cover) | |
| Style: | SS infused polycarbonate for ESD protection |
| Part Number: | 380-12211 |
| Switch Washer | |
| Style: | None |
| Part Number: | n/a |
| Trim Rings | |
| Style: | Black Humbucker w/ Chrome Trim Ring |
| Part Number: | 440-13884 / 440-13851 |
| Case | |
|---|---|
| Style: | HP Gig Bag |
| Color: | Black w/ White Logo |
| Strap Locks: | None |
| Tools: | Gibson USA Guitar Strap, Gibson USA Polishing Cloth, Tross rod wrench, 2.5mm adjustment wrench |
| Manual: | Gibson USA's owners |
| COA/Other: | None |
